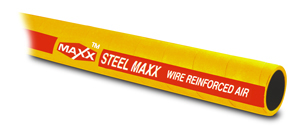

STEEL MAXX - Wire Reinforced Air
Request Info
Application
STEEL MAXX is a mandrel built wire reinforced heavy duty air hose for high pressure pneumatic applications. Built to withstand severe external abuse including mining, construction and industrial use.
Construction
Tube- Black oil and heat resistant SBR/NBR rubber
Reinforcement- Layers of high tensile steel wire
Cover- Yellow, cut and gouge resistant synthetic rubber
Branding- Red Stripe STEEL MAXX WIRE REINFORCED AIR
Temperature Range
-30°C to +80°C (-22°F to +176°F)
Standard Lengths
50ft/ 100ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per. Ft. Lbs. |
| WRY-.5 | 1/2 | .80 | 600 | 0.440 |
| WRY-.75 | 3/4 | 1.20 | 600 | 0.540 |
| WRY-1 | 1 | 1.46 | 600 | 0.680 |
| WRY-1.25 | 1-1/4 | 1.66 | 600 | 0.830 |
| WRY-1.5 | 1-1/2 | 2.05 | 600 | 1.120 |
| WRY-2 | 2 | 2.63 | 600 | 1.580 |
| WRY-2.5 | 2-1/2 | 3.27 | 600 | 2.400 |
| WRY-3 | 3 | 3.78 | 600 | 2.860 |
| WRY-4 | 4 | 4.8 | 600 | 4.210 |
