POLYSPRING
Application

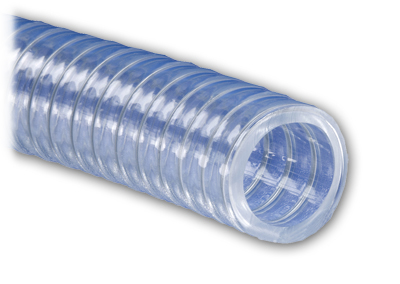

POLYSPRING® Series K7160 Standard Wall PVC Food & Beverage Vacuum/Transfer Hose. Standard wall food and beverage grade vacuum/transfer hose with rated working pressures. 29.9" HG vacuum rating at 70°F. Spiral wire reinforcement prevents kinking or collapsing. Hose diameter will not expand under normal rated working pressures. Resistant to chemicals. Self-extinguishing. Non-marking. Silicone-free. Special cut piece lengths available through 1" ID size. Phthalate Free! Manufactured in compliance with applicable FDA, 3A, NSF-51 and NSF-61 requirements.
Construction
Tube- Crystal clear, non-toxic, odourless and taste free PVC compound manufactured in compliance with applicable FDA, 3A, NSF-51 and NSF-61 requirements.
Cover- Food grade crystal clear PVC
Temperature Range
-4°C to +65°C (+25°F to +150°F)
Standard Lengths
50ft
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per. Ft. Lbs. |
Standard Lengths |
| POLYSPRING-.25 | 1/4 | 0.460 | 150 | 0.070 | 50 |
| POLYSPRING-.375 | 3/8 | 0.600 | 100 | 0.110 | 50 |
| POLYSPRING-.5 | 1/2 | 0.750 | 100 | 0.150 | 50 |
| POLYSPRING-.675 | 5/8 | 0.891 | 100 | 0.190 | 50 |
| POLYSPRING-.75 | 3/4 | 1.031 | 70 | 0.240 | 50 |
| POLYSPRING-1 | 1 | 1.297 | 70 | 0.330 | 50 |
| POLYSPRING-1.25 | 1-1/4 | 1.609 | 70 | 0.500 | 50 |
| POLYSPRING-1.5 | 1-1/2 | 1.860 | 50 | 0.580 | 50 |
| POLYSPRING-2 | 2 | 2.391 | 50 | 0.840 | 50 |
| POLYSPRING-2.25 | 2-1/4 | 2.750 | 50 | 1.160 | 50 |
| POLYSPRING-2.5 | 2-1/2 | 3.000 | 50 | 1.380 | 50 |
| POLYSPRING-3 | 3 | 3.500 | 50 | 1.620 | 50 |
