Ground Heater Hose
Request Info
Application
For transfer of glycol on ground heater equipment. Available in long lengths up to 1500ft. | Made in the USA
Construction
Tube- Black EPDM Rubber
Reinforcement- Multiple spirals of synthetic yarn
Cover- Black Smooth EPDM Rubber

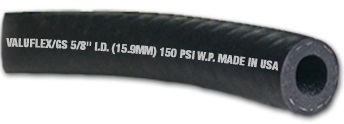

Branding- Valuflex/GS 5/8" I.D. (15.9MM) 150 PSI W.P. MADE IN USA
Temperature Range
-40°C to +93°C (-40°F to +200°F)
Standard Lengths
700 ft. / 1500 ft. (Special Order)
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per. Ft. Lbs. |
Reel Quantities |
Reel Quantity: Special Order |
| CWDT-625-150 | 5/8 | 0.94 | 150 | 0.23 | 700 ft | 1500 ft |
| CWDT-625-200 | 5/8 | 1.00 | 200 | 0.29 | 700 ft | 1500 ft |
