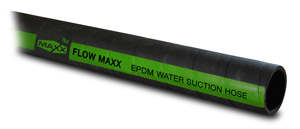

FLOW MAXX - EPDM Water Suction
Request Info
Application
FLOW MAXX EPDM water suction hose is a heavy duty rubber hose that is excellent for construction, quarries, and general use. Suitable for full vacuum.
Construction
Tube - Black EPDM rubber blend
Reinforcement - Dual high tensile steel helix embedded between textile cords
Cover - Black EPDM rubber blend
Branding - Green Stripe FLOW MAXX EPDM WATER SUCTION HOSE
Temperature Range
-32°C to +82°C (-25°F to +180°F)
Standard Lengths
3/4" to 6" -100ft cut to multiples of 5ft at no charge
8" to 12" - 40ft lengths cut to multiples of 5ft at no charge - 8" To 12" HAVE A CORRUGATED COVER
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Vacuum Rating (in Hg) 68F |
Approx. Wt. Per. Ft. Lbs. |
| WS-.75 | 3/4 | 1.14 | 150 | 3 | 28.0 | 0.420 |
| WS-1 | 1 | 1.38 | 150 | 4 | 28.0 | 0.530 |
| WS-1.25 | 1-1/4 | 1.73 | 150 | 5 | 28.0 | 0.750 |
| WS-1.5 | 1-1/2 | 1.97 | 150 | 5 | 28.0 | 0.870 |
| WS-2 | 2 | 2.45 | 150 | 8 | 28.0 | 1.120 |
| WS-2.5 | 2-1/2 | 2.99 | 150 | 11 | 28.0 | 1.370 |
| WS-3 | 3 | 3.50 | 150 | 15 | 28.0 | 1.840 |
| WS-3.5 | 3-1/2 | 4.10 | 150 | 18 | 28.0 | 2.620 |
| WS-4 | 4 | 4.60 | 150 | 19 | 28.0 | 3.430 |
| WS-5 | 5 | 5.59 | 150 | 24 | 28.0 | 4.810 |
| WS-6 | 6 | 6.61 | 150 | 25 | 28.0 | 4.920 |
| WS-8 | 8 | 8.86 | 150 | 36 | 28.0 | 9.820 |
| WS-10 | 10 | 11.02 | 150 | 50 | 28.0 | 15.270 |
| WS-12 | 12 | 12.99 | 150 | 60 | 28.0 | 17.240 |
