STEAM HOSE

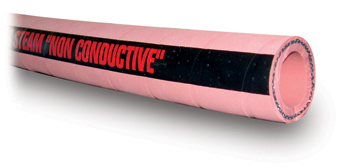

FIBREGLASS STEAM

Application

For use with saturated steam up to 100 PSI- 170°c (338°F) for thawing and washdown at paper mills and food plants. This hose is non-conductive. 400 PSI for water.

Construction

Tube- Red heat resistant EPDM synthetic rubber
Reinforcement- Layers of heat resistant fibreglass
Cover- Red heat, weather & oil resistant EPDM
Branding- Black stripe Fibreglass steam non-conductive

Temperature Range

-40°C to +170°C (-40°F to +338°F)

Standard Lengths

50ft

Parts No.
I.D. Inches
O.D. Inches
Max W.P. @ 70°F/20°C
Approx. Wt. Per. Ft. Lbs.
FS-.5 1/2 1.03 100 0.360
FS-.75 3/4 1.25 100 0.480
FS-1 1 1.50 100 0.590
FS-1.25 1-1/4 1.81 100 0.780
FS-1.5 1-1/2 2.06 100 0.900
FS-2 2 2.56 100 1.150
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
