Flex-Tube PV
Request Info
Temperature Range
-7°C to +71°C (20°F to +160°F)
Stock Sizes
1.5"-12"
AvailableSizes
1.5"-12"
Standard Stock Sizes
12ft, 25ft
Non Standard Lengths
None
Product Information

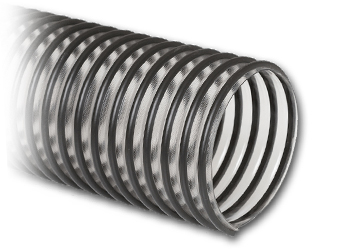

Medium weight clear co-extruded PVC hose with a rigid black external PVC helix. Ultra smooth interior wall assures efficient airflow. Very flexible & crush resistant. Spiral co-extruded engineered construction. Helix acts as a wearstrip. Wall Thickness = .026" (1.5"), .030” (2" to 3”), .032" (4"), .035” (5" to 8”), .040” (9” to 12”). OEM lengths & colors available. Available in a flame retardant version (Flex-Tube PV-FR). Cuffs available.
Product Applications
MATERIAL
Notes
* Pressures based on straight lengths of hose @ 72°F
Parts Number |
I.D. Inches |
Approx Weight |
Positive Pressure |
Negative Pressure |
Centreline Bend Radius |
| FLEX-TUBE-PV-4 | 4 | 0.720 | 16 | 14 | 4 |
| FLEX-TUBE-PV-5 | 5 | 0.920 | 17 | 12 | 5.25 |
| FLEX-TUBE-PV-6 | 6 | 1.110 | 12 | 10 | 6.25 |
| FLEX-TUBE-PV-7 | 7 | 1.320 | 11 | 10 | 7 |
| FLEX-TUBE-PV-8 | 8 | 1.500 | 10 | 6 | 8 |
