FLX-THANE MD POLYURETHANE
Request Info
Colour
Clear, Black
Temperature Range
-54°C to +107°C (-65°F to +200°F)
Stock Sizes
2"-12" Also Available in Metric Sizes - Please contact Sales Desk.
AvailableSizes
2"-24" Also Available in Metric Sizes - Please contact Sales Desk.
Standard Stock Sizes
25ft only
Non Standard Lengths
Made to order
Product Information

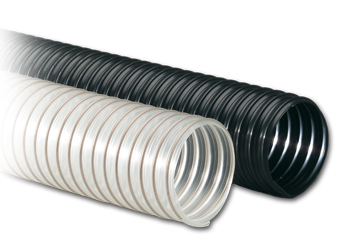

FLX-THANE MD - Durable urethane hose has excellent resistance to abrasion, cutting and gouging for a long product life. It is reinforced with a bronze coated spring steel helix, it maintains its excellent flexing characteristics even in the roughest conditions. The ideal hose for lightweight materials handling. Clear is manufactured with FDA acceptable material. Wall thickness= .030".
Product Applications
AIR
FUME
DUST
Notes
* Pressures based on straight lengths of hose @ 72°F
Clear
Parts Number |
I.D. Inches |
Approx Weight |
Positive Pressure |
Negative Pressure |
Centreline Bend Radius |
| FLX-CMD-2 | 2 | 0.250 | 30 | 29.0 | 2.00 |
| FLX-CMD-2.5 | 2-1/2 | 0.320 | 30 | 29.0 | 2.50 |
| FLX-CMD-3 | 3 | 0.400 | 29 | 29.0 | 3.00 |
| FLX-CMD-3.5 | 3-1/2 | 0.520 | 28 | 22.0 | 3.50 |
| FLX-CMD-4 | 4 | 0.700 | 25 | 29.0 | 4.00 |
| FLX-CMD-5 | 5 | 0.900 | 22 | 17.0 | 5.00 |
| FLX-CMD-6 | 6 | 1.000 | 19 | 15.0 | 6.00 |
| FLX-CMD-7 | 7 | 1.200 | 16 | 12.0 | 7.00 |
| FLX-CMD-8 | 8 | 1.500 | 14 | 9.0 | 8.00 |
| FLX-CMD-9 | 9 | 1.550 | 12 | 5.0 | 9.00 |
| FLX-CMD-10 | 10 | 1.600 | 11 | 4.0 | 8.00 |
| FLX-CMD-12 | 12 | 2.000 | 10 | 2.2 | 10.00 |
| FLX-CMD-14 | 14 | 2.500 | 8 | 3.3 | 12.00 |
| FLX-CMD-16 | 16 | 3.000 | 7 | 2.2 | 14.00 |
| FLX-CMD-18 | 18 | 3.300 | 6 | 1.40 | 16.00 |
Black
Parts Number |
I.D. Inches |
Approx Weight |
Positive Pressure |
Negative Pressure |
Centreline Bend Radius |
| FLX-BMD-2 | 2 | 0.250 | 30 | 29.0 | 2.00 |
| FLX-BMD-2.5 | 2-1/2 | 0.320 | 30 | 29.0 | 2.50 |
| FLX-BMD-3 | 3 | 0.400 | 29 | 29.0 | 3.00 |
| FLX-BMD-3.5 | 3-1/2 | 0.520 | 29 | 22.0 | 3.50 |
| FLX-BMD-4 | 4 | 0.700 | 25 | 29.0 | 4.00 |
| FLX-BMD-5 | 5 | 0.900 | 22 | 17.0 | 5.00 |
| FLX-BMD-6 | 6 | 1.000 | 19 | 15.0 | 6.00 |
| FLX-BMD-7 | 7 | 1.200 | 16 | 12.0 | 7.00 |
| FLX-BMD-8 | 8 | 1.500 | 14 | 9.0 | 8.00 |
| FLX-BMD-9 | 9 | 1.550 | 12 | 5.0 | 9.00 |
| FLX-BMD-10 | 10 | 1.600 | 11 | 4.0 | 8.00 |
| FLX-BMD-12 | 12 | 2.000 | 10 | 2.2 | 10.00 |
| FLX-BMD-14 | 14 | 2.500 | 8 | 3.3 | 12.00 |
| FLX-BMD-16 | 16 | 3.000 | 7 | 2.2 | 14.00 |
| FLX-BMD-18 | 18 | 3.300 | 6 | 1.40 | 16.00 |
