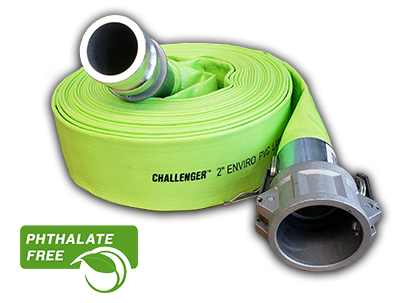

Enviro Layflat Hose
Request Info
Application
A durable, phthalate compliant PVC layflat discharge hose. Light weight for portable pump and irrigation use. Hose folds flat for ease of coiling and handling. Designed for open end discharge. High visibility green colour.
Construction
Tube- Visi-green PVC impregnation.
Reinforcement- Woven high tensile synthetic yarn.
Cover- Visi-green PVC impregnation
Temperature Range
-10°C to +60°C (+14°F to +140°F)
Standard Lengths
2,3" - 50ft assemblies
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per Length Lbs. |
| ECO-2-CGAC-CGAE-50 | 2 | 2.20 | 90 | 15.50 |
| ECO-3-CGAC-CGAE-50 | 3 | 3.11 | 90 | 26.00 |
