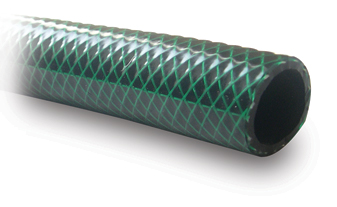

GARDEN HOSE
Request Info
Application
For general water service.
Construction
Tube- Black PVC
Reinforcement- Two layers of polyester cord
Cover- Green weather and abrasion resistant PVC
Temperature Range
-5°C to +65°C (+25°F to +150°F)
Standard Lengths
50ft/ 100ft/ 300ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per. Ft. Lbs. |
| GH-.5 | 1/2 | 0.70 | 125 | 0.115 |
| GH-.625 | 5/8 | 0.80 | 125 | 0.118 |
| GH-.75 | 3/4 | 1.00 | 100 | 0.208 |
| GH-1 | 1 | 1.31 | 100 | 0.345 |
