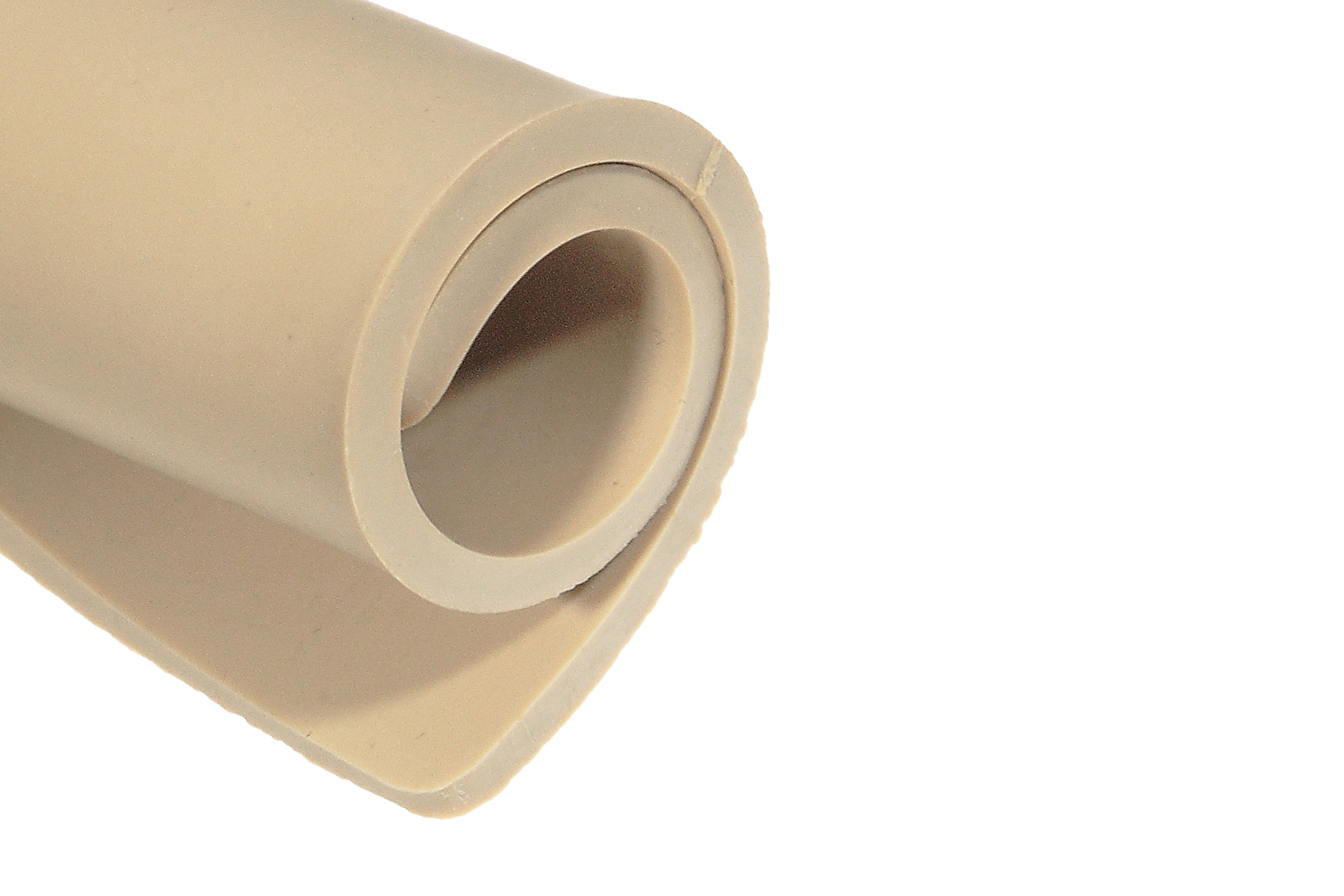

PURE GUM RUBBER 40 DUROMETER
ISO/ASTM DESIGNATION = NR
Request Info

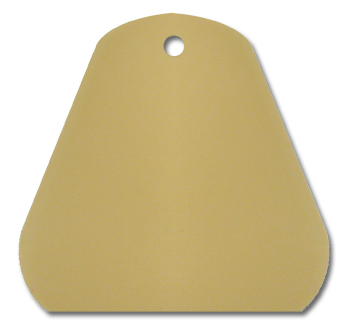

Colour
Tan
Finish
Smooth
Physical Characteristics
Tensile: 2300 PSI
Elongation: 600%
Hardness: 40 SHORE "A" +/- 5
Temperature Range: -40°C to 70°C (-40°F to 158°F)
Notes
A soft, long wearing non-marking natural rubber. Pure gums have excellent abrasion and tear resistance. It also has superior resilience, tensile and elongation characteristics. Gum rubber is also excellent on all steel surfaces against abrasion. Pure gum is not suitable for outdoor or oil resistant applications. it is also used for gasket and sand/shot blast curtain manufacturing. Pure Gum Rubber has excellent adhesion to fabric and metal. it is widely used to manufacture sleeves for chutes on current mixers.
ISO/ASTM DESIGNATION = NR
Parts No. |
Gauge x Width |
Length |
Wt. Per SF lbs. |
| PGI-.063-48 | 1/16" X 48" | 100FT | 0.34 |
| PGI-.125-48 | 1/8" X 48" | 66FT | 0.68 |
| PGI-.188-48 | 3/16" X 48" | 66FT | 1.02 |
| PGI-.25-36 | 1/4" X 36" | 66FT | 1.36 |
| PGI-.25-48 | 1/4" X 48" | 66FT | 1.36 |
| PGI-.375-48 | 3/8" X 48" | 50FT | 2.02 |
| PGI-.5-48 | 1/2" X 48" | 50FT | 2.71 |
| PGI-.75-48 | 3/4" X 48" | 50FT | 4.07 |
| PGI-1-48 | 1" X 48" | 50FT | 5.41 |
