FLX-Thane LD Polyurethane

Download Technical Datasheet

Colour

Black, Clear

Temperature Range

-54°C to +107°C (-65°F to +225°F)

Stock Sizes

2"-12"

AvailableSizes

2"-18"

Standard Stock Sizes

25ft only

Non Standard Lengths

Made to order

Product Information

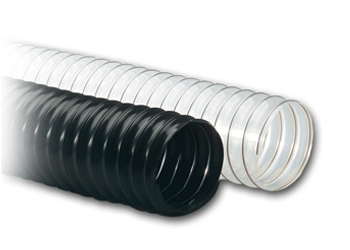

FLX-THANE LD - A lighter wall polyurethane hose supported by a narrow pitch spring steel wire helix. Suitable for air and fume ventilation, vapour recovery system and lightweight materials handling, such as sawdust conveying system and gravity flow material handling. Clear is manufactured with FDA acceptable material. Wall Thickness= .015" - 2" .020" - 2-1/2" and above.

Product Applications

AIR

FUME

DUST

MATERIAL

Notes

* Pressures based on straight lengths of hose @ 72°F

Clear

Parts Number	I.D. Inches	Approx Weight	Positive Pressure	Negative Pressure	Centreline Bend Radius
FLX-CLD-2	2	0.250	30.0	29.0	2.00
FLX-CLD-2.5	2-1/2	0.350	30.0	19.0	2.75
FLX-CLD-3	3	0.400	30.0	19.0	3.25
FLX-CLD-4	4	0.500	22.0	24.0	3.75
FLX-CLD-5	5	0.600	18.0	13.0	4.50
FLX-CLD-6	6	0.700	15.0	8.0	5.25
FLX-CLD-7	7	0.800	7.0	8.0	5.88
FLX-CLD-8	8	0.900	7.0	2.0	6.50
FLX-CLD-10	10	1.200	6.0	2.0	7.50
FLX-CLD-12	12	1.400	4.0	1.7	9.00
FLX-CLD-14	14	1.600	5.0	1.1	12.00
FLX-CLD-16	16	1.800	4.6	0.7	14.00
FLX-CLD-18	18	2.000	4.1	0.5	16.00

Black

Parts Number	I.D. Inches	Approx Weight	Positive Pressure	Negative Pressure	Centreline Bend Radius
FLX-BLD-2	2	0.250	30.0	29.0	2.00
FLX-BLD-2.5	2-1/2	0.350	30	19.0	2.75
FLX-BLD-3	3	0.400	30.0	3.25	2.75
FLX-BLD-4	4	0.500	22.0	24.0	3.75
FLX-BLD-5	5	0.600	18.0	13.0	4.50
FLX-BLD-6	6	0.700	15.0	8.0	5.25
FLX-BLD-7	7	0.800	7.0	8.0	5.88
FLX-BLD-8	8	0.900	7.0	2.0	6.50
FLX-BLD-10	10	1.200	6.0	2.0	7.50
FLX-BLD-12	12	1.400	4.0	1.7	9.00
FLX-BLD-14	14	1.600	5.0	1.1	12.00
FLX-BLD-16	16	1.800	4.6	0.7	14.00
FLX-BLD-18	18	2.000	4.1	0.5	16.00

FLX-THANE LD POLYURETHANE
