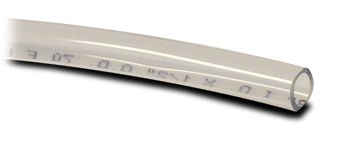

CLEAR PVC TUBING- FOOD GRADE
Request Info
Series: K010
Application
For handling beverages, food stuffs and liquids where clarity, flexibility and a food grade compound are required. This product complies with FDA, 3A, NSF-51 and NSF-61 requirements.
Construction
Tube- Crystal clear, non-toxic, odourless and taste free PVC compound manufactured in compliance with applicable FDA, 3A, NSF-51 and NSF-61 requirements
Cover- Food grade crystal clear PVC
Temperature Range
-4°C to +35°C (+25°F to +150°F)
Standard Lengths
100ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Wall Inches |
Approx. Wt. Per. Ft. Lbs. |
| PVCTUB-.125 | 1/8 | 1/4 | 65 | 1/16 | 0.020 |
| PVCTUB-.188-.25 | 3/16 | 1/4 | 50 | 1/32 | 0.012 |
| PVCTUB-.188 | 3/16 | 5/16 | 55 | 1/16 | 0.027 |
| PVCTUB-.25-.375 | 1/4 | 3/8 | 55 | 1/16 | 0.034 |
| PVCTUB-.25-5 | 1/4 | 1/2 | 60 | 1/8 | 0.080 |
| PVCTUB-.313 | 5/16 | 7/16 | 50 | 1/16 | 0.040 |
| PVCTUB-.375-.5 | 3/8 | 1/2 | 45 | 1/16 | 0.047 |
| PVCTUB-.375-.625 | 3/8 | 5/8 | 55 | 1/8 | 0.107 |
| PVCTUB-.5-.625 | 1/2 | 5/8 | 30 | 1/8 | 0.060 |
| PVCTUB-.5-.75 | 1/2 | 3/4 | 45 | 1/8 | 0.134 |
| PVCTUB-.625-.75 | 5/8 | 3/4 | 30 | 1/16 | 0.082 |
| PVCTUB-.625 | 5/8 | 7/8 | 40 | 1/8 | 0.161 |
| PVCTUB-.75 | 3/4 | 1 | 35 | 1/8 | 0.188 |
| PVCTUB-.875 | 7/8 | 1-1/8 | 30 | 1/8 | 0.214 |
| PVCTUB-1 | 1 | 1-1/4 | 25 | 1/8 | 0.241 |
| PVCTUB-1-1.5 | 1 | 1-1/2 | 35 | 1/4 | 0.536 |
| PVCTUB-1.25 | 1-1/4 | 1-1/2 | 20 | 1/8 | 0.296 |
| PVCTUB-1.5 | 1-1/2 | 1-7/8 | 30 | 3/16 | 0.542 |
| PVCTUB-1.5-2 | 1-1/2 | 2 | 35 | 1/4 | 0.750 |
| PVCTUB-2 | 2 | 2-1/2 | 35 | 1/4 | 0.964 |
