FOOD MAXX -Edible Liquid Suction and Discharge
Request Info
Application
FOOD MAXX is a premium quality food suction and discharge hose and is designed to handle most liquid food products including fats and oils without imparting taste, odour, or smell. FOOD MAXX's nitrile cover has excellent resistance to natural oils and is suitable for full vacuum service. Food Maxx may also be used to transfer beer, wine, spirits. Stronger forms of Alcohol up to 40% maybe transferred at ambient temperatures at low suction.
Construction
Tube - White nitrile, non-toxic, food grade compound
Reinforcement - A steel helix embedded between layers of synthetic cords
Cover - Grey oil and fat resistant nitrile rubber

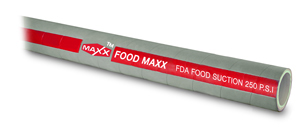

Branding - Red Stripe FOOD MAXX FDA FOOD SUCTION 250 PSI
Temperature Range
-35°C to +93°C (-31°F to +200°F)
Standard Lengths
50ft/ 100ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Vacuum Rating (in Hg) 68F |
Approx. Wt. Per. Ft. Lbs. |
| WF-.75 | 3/4 | 1.29 | 250 | 5 | FULL | 0.600 |
| WF-1 | 1 | 1.50 | 250 | 5" | FULL | 0.701 |
| WF-1.5 | 1-1/2 | 2.05 | 250 | 7" | FULL | 1.188 |
| WF-2 | 2 | 2.60 | 250 | 9" | FULL | 1.669 |
| WF-2.5 | 2-1/2 | 3.19 | 250 | 11.5" | FULL | 2.536 |
| WF-3 | 3 | 3.66 | 250 | 13.5" | FULL | 2.687 |
| WF-4 | 4 | 4.7. | 250 | 18" | FULL | 3.865 |
