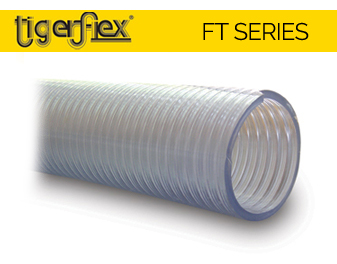

FT SERIES PVC FOOD SUCTION & DISCHARGE
Request Info
Smooth Cover Clear Helix
Application
Can be used for any liquids or dry materials for human consumption. Suitable for full vacuum. Complies with all applicable FDA and 3A requirements.
Construction
Tube- Crystal clear PVC compounded from non-toxic ingredients in compliance with applicable FDA requirements.
Reinforcement- Clear PVC Helix for suction applications
Cover- Food grade crystal clear PVC with smooth cover (SF) or corrugated cover (CF)
Temperature Range
-20°C to +70°C (-4°F to +158°F)
Standard Lengths
100ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Approx. Wt. Per. Ft. Lbs. |
| SF-.75 | 3/4 | 0.94 | 115 | 3 | 0.17 |
| SF-1 | 1 | 1.28 | 100 | 3 | 0.24 |
| SF-1.25 | 1-1/4 | 1.56 | 90 | 4 | 0.44 |
| SF-1.5 | 1-1/2 | 1.80 | 85 | 6 | 0.50 |
| SF-2 | 2 | 2.36 | 85 | 8 | 0.71 |
| SF-2.5 | 2-1/2 | 2.88 | 65 | 10 | 0.94 |
| SF-3 | 3 | 3.42 | 55 | 11 | 1.14 |
| SF-4 | 4 | 4.51 | 50 | 18 | 1.91 |
| SF-5 | 5 | 5.51 | 50 | 28 | 1.91 |
| SF-6 | 6 | 6.59 | 30 | 48 | 3.28 |
