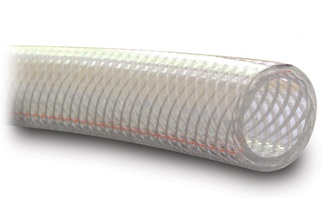

SERIES K3150 CLEAR REINFORCED PVC FOOD GRADE
Request Info
Series: K3150
Application
Air, drinking water, mild chemicals and alkalis. This product complies with all applicable FDA, 3A, NSF-51 and NSF-61 requirements.
Construction
Tube- Clear smooth PVC. NSF-51 &NSF-61 certified material
Reinforcement- High tensile synthetic braid
Cover- Clear, smooth PVC. NSF-51 & NSF-61 certified material
Temperature Range
-4°C to +65°C (+25°F to +150°F)
Standard Lengths
100ft / 300ft coils up to 1/2"
200ft coils 5/8" to 1"
100ft coils 1-1/4 to 2"
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per. Ft. Lbs. |
| CRF-.188 | 3/16 | .375 | 250 | 0.040 |
| CRF-.25 | 1/4 | .438 | 250 | 0.060 |
| CRF-.313 | 5/16 | .531 | 250 | 0.080 |
| CRF-.375 | 3/8 | .594 | 225 | 0.090 |
| CRF-.5 | 1/2 | .750 | 200 | 0.130 |
| CRF-.625 | 5/8 | .891 | 200 | 0.180 |
| CRF-.75 | 3/4 | 1.031 | 150 | 0.220 |
| CRF-1 | 1 | 1.300 | 125 | 0.300 |
| CRF-1.25 | 1-1/4 | 1.620 | 100 | 0.450 |
| CRF-1.5 | 1-1/2 | 1.938 | 100 | 0.640 |
| CRF-2 | 2 | 2.490 | 75 | 0.940 |
