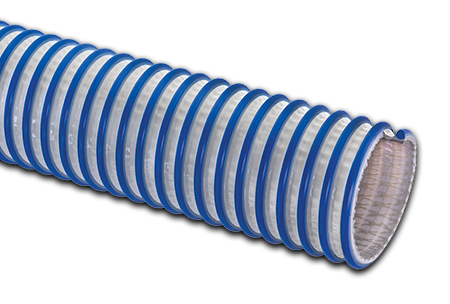

Tiger Aqua
Request Info
Application
Tiger Aqua is designed for the transfer of food grade liquids such as beer, wine, and juice. It is also constructed for the transfer of potable water in residential, oilfield, airport and marine (ship), and ice transfer applications.
Construction
Tube - Double-Ply PVC tube
Reinforcement - Polyester fabric
Cover - Rigid PVC helix
Temperature Range
-40°C to +65°C (-40°F to +150°F)
Standard Lengths
1-1/2" to 4" - 100 ft lengths
6" to 8" - 20 ft lengths
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. PSI @ 21°C (70°F) |
Bend Radius |
Vacuum Rating (in Hg) 68F |
Approx. Wt. Per. Ft. Lbs. |
Standard Lengths |
| TAQ-1.5 | 1-1/2 | 1.95 | 110 | 2.5" | FULL | 0.42 | 100 ft |
| TAQ-2 | 2 | 2.60 | 100 | 4" | FULL | 0.74 | 100 ft |
| TAQ-3 | 3 | 3.62 | 100 | 6" | FULL | 1.13 | 100 ft |
| TAQ-4 | 4 | 4.76 | 75 | 8" | FULL | 1.74 | 100 ft |
| TAQ-6 | 6 | 7.17 | 70 | 13" | 28 | 3.88 | 100 ft |
| TAQ-8 | 8 | 9.21 | 60 | 18 | 26 | 5.57 | 20 ft |
