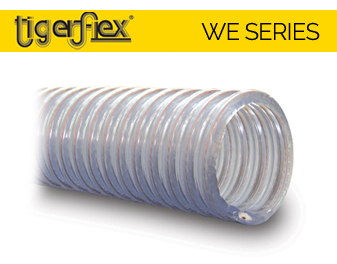

WE SERIES PVC FOOD SUCTION WITH STATIC WIRE
Request Info
Series: WE
Application
Pneumatic conveying systems for powder or granular materials. Static wire for grounding. Paper mill vacuum lines. (For pneumatic system dry material transfer only.)
Construction
Tube- Crystal clear PVC compounded from non-toxic ingredients in compliance with applicable FDA requirements. Smooth bore to eliminate material build-up
Reinforcement- Clear PVC Helix and static wire for grounding
Cover- Food grade crystal clear PVC with corrugated cover
Temperature Range
Static -20°C to +66°C (-4°F to +150°F) Dynamic -10°C to +40°C (14°F to +104°F)
Standard Lengths
1-1/2", 2" and 3" 60ft and 100ft All other sizes 100ft only
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Approx. Wt. Per. Ft. Lbs. |
| WE-1.5 | 1-1/2 | 1.93 | 50 | 3 | 0.430 |
| WE-2 | 2 | 2.48 | 40 | 4 | 0.580 |
| WE-2.5 | 2-1/2 | 3.07 | 40 | 5 | 0.890 |
| WE-3 | 3 | 3.64 | 40 | 6 | 1.250 |
| WE-4 | 4 | 4.72 | 35 | 10 | 1.930 |
| WE-5 | 5 | 5.74 | 30 | 16 | 2.400 |
| WE-6 | 6 | 6.81 | 30 | 18 | 3.700 |
| WE-45MM | 45mm | 2.20 | 45 | 4 | 0.460 |
| WE-57MM | 57mm | 2.76 | 40 | 4.5 | 0.640 |
