Marine Exhaust Hard Wall

Product Information

All hoses certified to Lloyds approval for Marine Wet Exhaust hose. SAE-J2006 USCG R2. Recommend for working temperatures of up to 100°C (212°F). Used for wet exhaust in pleasure craft marine engine applications. Specifically blended EPDM tube and cover for long life under severe conditions. Black tube

Construction

Tube- EPDM rubber
Reinforcement- A high tensile steel helix embedded between textile cords
Cover- EPDM rubber

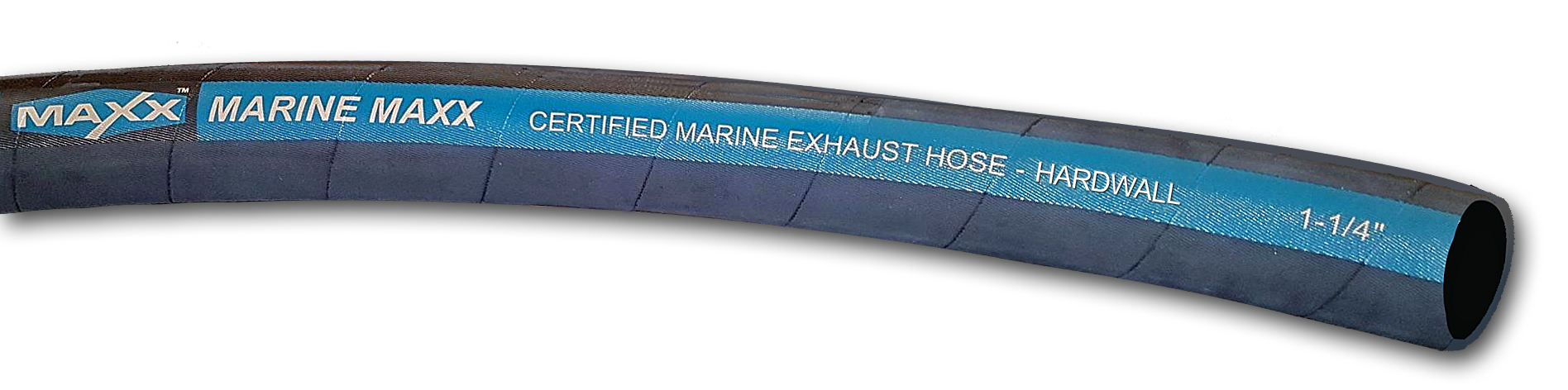

Branding- Blue stripe "CERTIFIED MARINE EXHAUST size"

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Standard Lengths

100ft cut to any length at no charge

Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.

Parts No.	I.D. Inches	O.D. Inches	Max W.P. @ 70°F/20°C	Bend Radius	Approx. Wt. Per. Ft. Lbs.
MXH-.5	1/2	0.84	60	4	0.350
MXH-.75	3/4	1.16	60	6	0.450
MXH-.875	7/8	1.25	60	7	0.500
MXH-1	1	1.40	60	8	0.600
MXH-1.125	1-1/8	1.52	60	9	0.700
MXH-1.25	1-1/4	1.70	60	10	0.750
MXH-1.375	1-3/8	1.82	60	11	0.825
MXH-1.5	1-1/2	1.97	60	12	0.900
MXH-1.625	1-5/8	2.10	60	13	1.050
MXH-1.75	1-3/4	2.23	60	14	1.200
MXH-1.875	1-7/8	2.35	60	15	1.250
MXH-2	2	2.50	60	16	1.350
MXH-2.125	2-1/8	2.64	60	17	1.450
MXH-2.25	2-1/4	2.75	60	18	1.550
MXH-2.375	2-3/8	2.88	60	19	1.650
MXH-2.5	2-1/2	3.06	60	20	1.800
MXH-2.625	2-5/8	3.18	60	21	1.900
MXH-2.875	2-7/8	3.43	60	23	2.100
MXH-3	3	3.61	60	24	2.250
MXH-3.125	3-1/8	3.64	60	25	2.300
MXH-3.5	3-1/2	4.11	60	28	2.650
MXH-4	4	4.56	60	32	3.200
MXH-4.125	4-1/8	4.68	60	33	3.300
MXH-4.5	4-1/2	5.19	60	36	3.710
MXH-5	5	5.59	60	40	4.020
MXH-5.5	5-1/2	6.09	60	44	4.510
MXH-6	6	6.61	60	48	5.000
