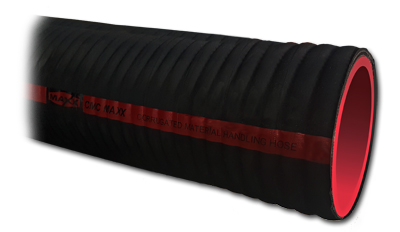

CMC MAXX - Corrugated Material Conducting
Application
CMC MAXX corrugated material handling hose is designed for abrasive suction and discharge service. Utilizes split flanged couplings, which can be installed without special tools, allows hose to be purchased in long lengths and cut as required. The reusable coupling allow full flow of material and permits the hose to be easily rotated for even wear.
Construction
Tube - Highly abrasion resistant red pure gum rubber
Reinforcement - Synthetic fabric reinforcement and wire helix
Cover - Black abrasion resistant synthetic rubber corrugated to enhance flexibility and match internal corrugations of external split flanged coupling
Branding - Red stripe CMC MAXX CORRUGATED MATERIAL HANDLING CONDUCTING HOSE
Temperature Range
-40°C to +82°C (-40°F to +180°F)
Standard Lengths
2" to 6" - 100ft
8" - 40ft
10" - 40ft
12" - 20ft
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Vacuum Rating (in Hg) 68F |
Tube Gauge MM |
Approx. Wt. Per. Ft. Lbs. |
| CMC-2 | 2 | 3.00 | 150 | 6 | 29.92 | 1/4 | 2.373 |
| CMC-3 | 3 | 4.50 | 150 | 9 | 29.92 | 1/4 | 5.262 |
| CMC-4 | 4 | 5.30 | 150 | 12 | 29.92 | 1/4 | 5.546 |
| CMC-5 | 5 | 6.46 | 150 | 20 | 29.92 | 1/4 | 8.204 |
| CMC-6 | 6 | 7.50 | 150 | 24 | 29.92 | 5/16 | 10.021 |
| CMC-8 | 8 | 9.50 | 150 | 36 | 29.92 | 5/16 | 12.865 |
| CMC-10 | 10 | 11.50 | 150 | 50 | 29.92 | 5/16 | 17.218 |
| CMC-12 | 12 | 13.75 | 150 | 60 | 29.92 | 5/16 | 23.988 |
