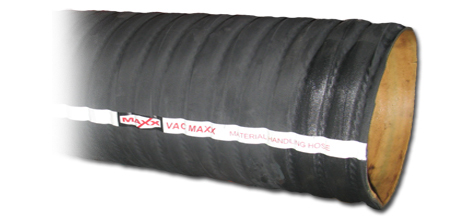

VAC MAXX - Industrial Vacuum
Request Info
Application
A rugged and extremely flexible industrial vacuum cleaning hose designed for material handling applications.
Construction
Tube- Tan abrasion resistant Pure Gum
Reinforcement- Two high tensile steel wire helixes and spirals of synthetic yarn
Cover- Black corrugated abrasion resistant SBR rubber
Branding- VAC MAXX Material Handling Hose (red lettering, white background)
Temperature Range
-35°C to +82°C (-31°F to +180°F)
Standard Lengths
100ft cut to multiples of 10ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Tube Gauge MM |
Approx. Wt. Per. Ft. Lbs. |
| IV-1 | 1 | 1.25 | 200 | 6 | 1.8mm | 0.330 |
| IV-1.25 | 1-1/4 | 1.50 | 200 | 8 | 1.6mm | 0.450 |
| IV-1.5 | 1-1/2 | 1.75 | 180 | 9 | 1.7mm | 0.530 |
| IV-2 | 2 | 2.32 | 140 | 12 | 2.3mm | 0.810 |
| IV-2.5 | 2-1/2 | 2.80 | 110 | 15 | 2.0mm | 1.000 |
| IV-3 | 3 | 3.31 | 90 | 18 | 2.0mm | 1.270 |
| IV-4 | 4 | 4.41 | 70 | 24 | 3.0mm | 2.050 |
| IV-5 | 5 | 5.39 | 80 | 30 | 2.3mm | 2.910 |
| IV-6 | 6 | 6.46 | 70 | 36 | 2.1mm | 4.810 |
| IV-8 | 8 | 8.45 | 50 | 46 | 2.0mm | 6.900 |
