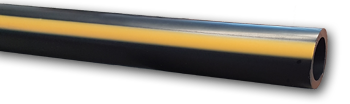

SERIES K7000 ANTI STAT BLASTING HOSE
Request Info
Series: K700
Product Information
A specially formulated anti-static PVC tubing for the loading of ammonium nitrate/fuel oil blasting agents used in the mining and construction industries.
Temperature Range
-35°C to 65ºC (-30°F to 150 ºF)
Standard Lengths
100ft, 200ft, 300ft
Note:
A new coil of tubing can have its pliancy restored by the application of heat before it is placed in service underground. This will facilitate handling and its attachment to pneumatic loading equipment. Steam or very hot water passed through the coiled tubing will remove the "set" from the new tubing and allow it to be straightened.
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Weight (lbs.) |
Standard Lengths |
| ANFO-.625 | 5/8 | 0.8600 | 120 | 35.00 | 200ft |
| ANFO-.75 | 3/4 | 1.0625 | 120 | 56.00 | 200ft |
| ANFO-1 | 1 | 1.3300 | 120 | 114.00 | 300ft |
| ANFO-1.25 | 1-1/4 | 1.6250 | 120 | 55.00 | 100ft |
