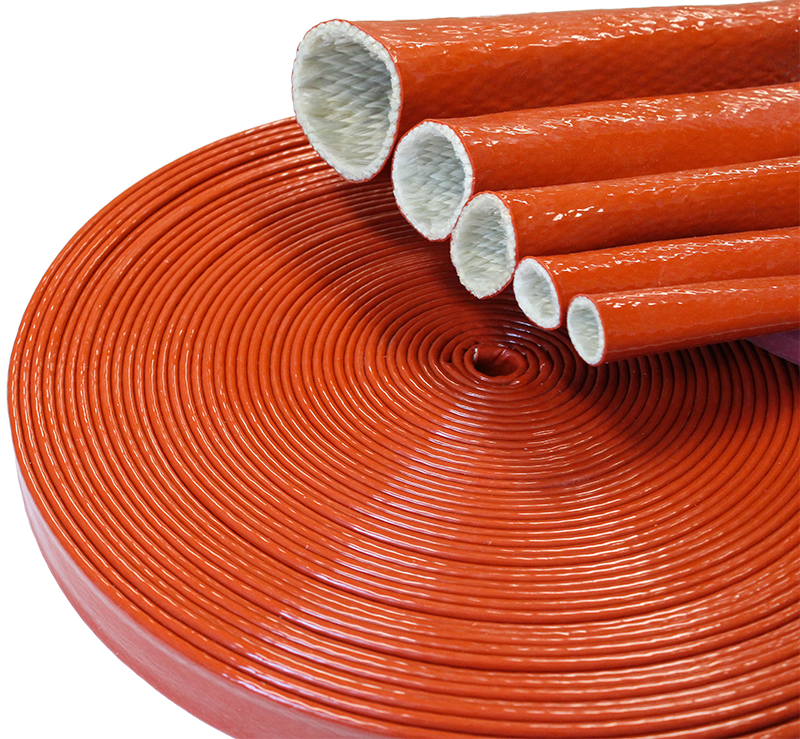

Silicone Fire Sleeve
Request Info
Product Information
Designed to protect and to be easily installed over hoses, cables, tubings, and pipes. Protects individuals from incurring severe burn injuries on hot hoses and pipes
Resistant Against:
| Molten metal splash | Abrasion |
| Radiant Heat | Steel Slag |
| Corrosion | Chemicals |
| Vibration | Moisture |
Cover
Red, iron oxide silicone rubber
Reinforcement
Insulated braided E-glass fabric
Temperature Range
Rated for 500°F (260°C) continuous exposure:
Up to 2000°F (1093°C) for 15-20 minutes
Up to 3000°F (1650°C) for 15-30 seconds
Certifications
UL 1441 Flammability VW1 Certified
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
Standard Lengths |
| SFS-.25 | 1/4 | 50ft, 100ft |
| SFS-.375 | 3/8 | 50ft, 100ft |
| SFS-.5 | 1/2 | 50ft, 100ft |
| SFS-.625 | 5/8 | 50ft, 100ft |
| SFS-.75 | 3/4 | 50ft, 100ft |
| SFS-.875 | 7/8 | 50ft, 100ft |
| SFS-1 | 1 | 50ft, 100ft |
| SFS-1.125 | 1-1/8 | 50ft, 100ft |
| SFS-1.25 | 1-1/4 | 50ft, 100ft |
| SFS-1.375 | 1-3/8 | 50ft, 100ft |
| SFS-1.5 | 1-1/2 | 50ft, 100ft |
| SFS-1.625 | 1-5/8 | 50ft, 100ft |
| SFS-1.75 | 1-3/4 | 50ft, 100ft |
| SFS-2 | 2 | 50ft, 100ft |
| SFS-2.25 | 2-1/4 | 50ft, 100ft |
| SFS-3 | 3 | 50ft, 100ft |
| SFS-4 | 4 | 50ft, 100ft |
