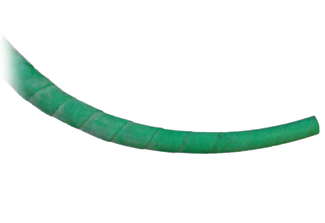

PAPERMILL WASHDOWN WITH BUILT-ON-NOZZLE
Request Info
Application
Suitable for hot or cold water washdown service in paper mills. Hose incorporates an integral built-on smooth tapered rubber nozzle.
Construction
Tube- Black synthetic heat resistant rubber
Reinforcement- Multiple spirals of moisture resistant synthetic yarn
Cover- Green abrasion resistant rubber
Temperature Range
-35°C to +95°C (-31°F to +203°F)
Standard Lengths
50ft
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Approx. Wt. Per 50ft. Length c/w Nozzle |
| PWDN-.75 | 3/4 | 1.14 | 250 | 21.4 |
| PWDN-1 | 1 | 1.41 | 250 | 26.2 |
| PWDN-1.25 | 1-1/4 | 1.73 | 200 | 32.1 |
| PWDN-1.5 | 1-1/2 | 2.04 | 200 | 47.1 |
