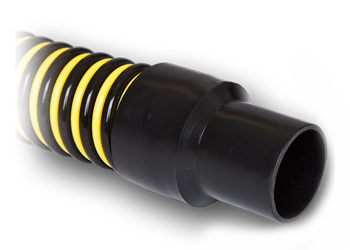

TIGER TAIL PVC SUCTION
Request Info
Application
Improved double helix design allows for superior flexibility and durability even in sub-zero temperatures. Designed to provide maximum abrasion protection for sewer jetting hose, expensive camera and utility inspection equipment. Recommended for Light Bulk Material Handling Applications.
Construction
Tube- Smooth interior increases flow efficiency even at sharp bends
Cover- Black and yellow tough abrasion resistant
Temperature Range
-40°C to +60°C (-40°F to +140°F)
Standard Lengths
25ft/ 50ft
Non-standard Lengths
Made to order
Notes
* Price per foot includes Poly-welded leak proof cuffs each end.
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
Positive PSI |
Bend Radius |
Vacuum Rating (in Hg) 68F |
Approx. Wt. Per. Ft. Lbs. |
| TIGER-1.5 | 1-1/2 | 26 | 3.75 | 29 | 0.350 |
| TIGER-2 | 2 | 17 | 5.00 | 29 | 0.650 |
| TIGER-3 | 3 | 12 | 8.00 | 29 | 1.200 |
| TIGER-4 | 4 | 7 | 9.50 | 29 | 1.600 |
